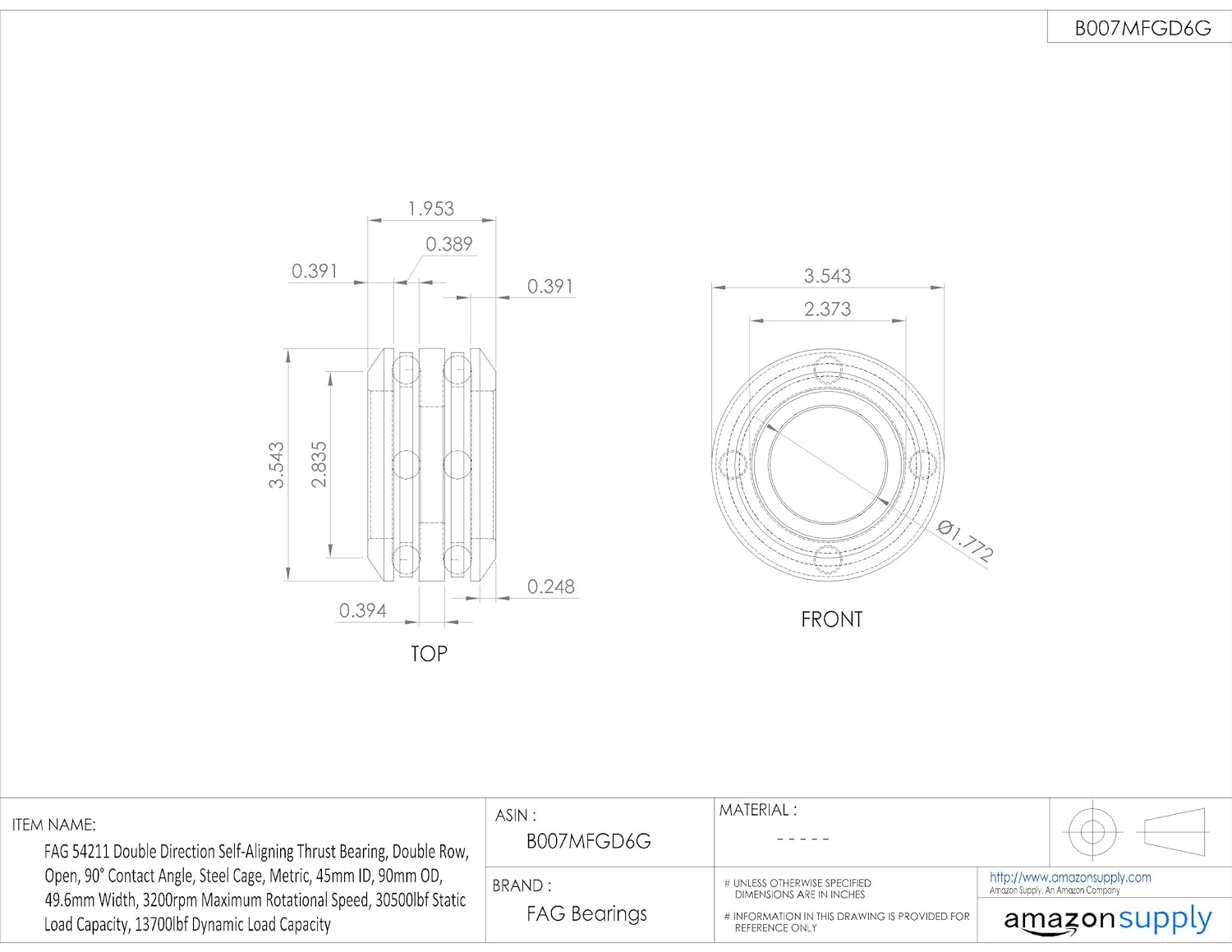

FAG Bearings 54211 Double Row Double Direction Self-Aligning Thrust Bearing, Open, 90° Contact Angle, Steel Cage, Metric, 45mm ID, 90mm OD, 49.6mm Width, 3200rpm

This FAG self-aligning, double-direction thrust ball bearing has a 90-degree contact angle, a double row of balls, steel cages, and an open construction. It is suitable for moderate-speed applications that support heavy axial loads in both directions and no radial loads. This deep-groove thrust ball bearing consists of two spherical housing locating washers (rings), a shaft locating washer, and two ball and cage assemblies. The washers have grooved raceways that conform to the balls rotating between them, allowing higher speeds and thrust bearing capacity than bearings with flat raceways. The bearing is self-aligning with spherical-shaped housing washers that help compensate for static angular misalignments between the shaft and housing. The double-row design supports bidirectional thrust loads with minimum axial deflection, increasing the load carrying capacity, and the open construction allows for the bearing to be lubricated in place. This bearing has a 90-degree contact angle in which the ball and inner and outer raceway contact points are on a plane parallel to the axial load, which enables the bearing to receive high axial force. The balls and washers are made of a low-alloy, through-hardened chromium steel for durability, heat tolerance, and resistance to deformity under heavy loads, and the sheet steel cage prevents the balls from coming into contact with each other during use, reducing friction, vibration, and noise. This bearing is separable so it mounts more easily than nonseparable bearings because its components can be installed independently. It can be used at operating temperatures from -30 degrees C to 150 C (-22 degrees F to 302 F). This thrust ball bearing has a PN (normal) tolerance class rating for dimensional accuracy and is suitable for applications including machine tool drive shafts, automotive steering gears and clutches, rotary tables, outboard motor propellers, and household appliances. SpecificationsMain bearing dimensionsDIN 715Basic dynamic load ratingsDIN ISO 281Dimensional and geometric tolerancesDIN 620-3 (ISO 199), tolerance class PNThrough-hardening steel for inner and outer rings and rollersISO 683-17Steel strip for cageEN 10139, SAE J403Load carrying capacity and lifeDIN ISO 281 Appendix 1System for creating part numbers for rolling bearingsDIN 623-1Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.FAG manufactures a variety of bearings that meet International Organization for Standardization (ISO) and Deutsches Institut für Normung (DIN) standards for quality assurance. The company, founded in 1883, is based in Schweinfurt, Germany.

• Double direction, deep-groove thrust ball bearing for moderate speed applications that support heavy axial loads in both directions
• Self-aligning bearing with sphered housing rings to compensate for static angular misalignments between the shaft and housing
• Through-hardened chromium steel for durability and resistance to deformity under heavy loads
• Sheet steel retainer evenly spaces rollers for reduced friction, vibration, and noise
• Grooved raceways for higher speeds and thrust-bearing capacity than flat washers
