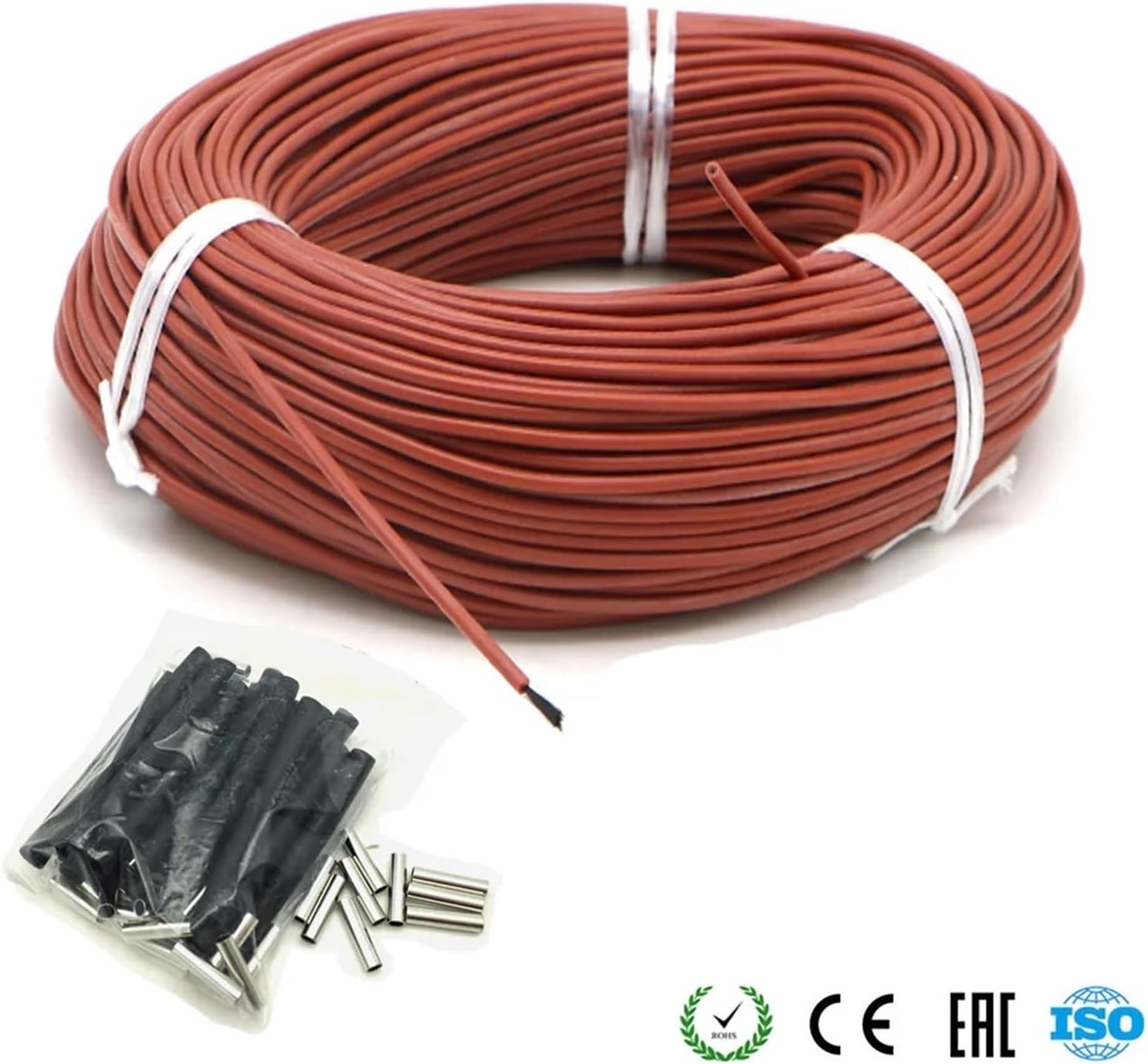

10 to 100 Meters Carbon Fiber Heating Cable Infrared Warm Floor Cable 12K 33ohm/m Electric Carbon Heating Wires(20m)

Pipe Heat Cables10 to 100 Meters carbon fiber heating cable Infrared Warm Floor Cable 12K 33ohm/m Electric Carbon Heating WiresProduct Name: Carbon fiber heating wireInsulating materials: Silicone rubberTemperature: 200 degrees celsiuslimitHeating conductor: 12KHigh voltage test: 3000VLeakage current: 0.05mA/mThe product can withstand the power of power: 25W/MDiameter: 3±0.2MMOptional colors: Red/YellowInfrared wavelength: 8UM-18UMConductor resistance: 33±10%Ohm/ MLength: (custom,not less than 10 meters)Product Power Calculation:Voltage * voltage / total resistance = powerFor example: 12K carbon fiber, length of 10 meters220V × 220V / (10 m x 33 Ohm) =150 wattsFor example: 12K carbon fiber length of 15 meters220V × 220V / (15 m x 33 Ohm) =100 wattsThe data showsthatthe longer heating wire you use and the smalleroutput power. (The min length of 12K carbon fiber heating wire is 10 meters)Product Advantages:1.High energy-efficient: Don't need other transmission medium, theelectrothermal conversion efficiency is above 98%.2.Comfortable and healthy: infrared floor heating, make the temperature uniformity,promote blood circulation.3.Easy to install: The carbon fiber heating wire cost a little, and has a long life span, an (10/15/20/30/50/100)meters 12K carbon fiber heating cable+ 2 pcs copper tubes and2 pcs heat shrinkables(free gift!) per 10meters(There are may have a little color different due to light)1. Floor heating forHome and office:Homes, villas, hotels, office buildings, hospitals, shopping malls2. Floor heating forpublic areas:Swimming pool, soccer field, gymnasium, museum, memorial hall, the kindergarten3. Floor heating for large public facilities:Bus terminal, parking lot, airport, highways4. Floor heating forprofessional field:Botanical , greenhouse, laboratory==========Voltage : 81-600V(include600V)Structure : Without modular telephone connectorsUse : Not TelecommunicationHigh-concerned chemical : NoneModel Number : CF-12-RType : InsulatedInsulation Material : RubberCertification : Product name : Carbon Fiber Heating WiresResistance : 33 Ohm/mCore size : 12KOuter jacket : Silicone RubberDiameter : 3 mmWorking voltage : 7~300 VMax during temperature : 200 CColor : RedAppliction : Underfloor Warming, Anti-Freeze
